Shunt

Dongya shunt are highly accurate manganin resistance D.C shunts. These shunts are designed for standard current measurement of electric equipment which can handle current sensing from 1A to 12000A/20mV~1000mV.Dongya can also offer a customized design base on 40year’s experience and advanced technical devices.
It was highly used in telecommunications equipment、electric cars、aerospace、charging station、electroplating power equipment、instrument and DC power system.

SHUNT SH-Fm 1A-150A
For Telecommunications equipment、Electric cars、Aerospace、Charging station、Electroplating Power Equipment、Instrument and meter, Dc ...
SH-F 1A-200A
The interchangeable shunts are used to multiply the measuring range of current of measuring instruments....
SHUNT SH-F 250A-600A
Rated voltage drop range: 1A-50A 10mV~800mV;51A-2500A  10mV~300mV。...
SHUNT SH-F 750A-800A
Temperature rise: Put in rated current for 2hr, after the temperature rising steady test it: When the rated current less than 100A...
SHUNT SH-F 1000A-1500A
Over load performance: 120% of rated current for 2hours....
SHUNT SH-F 2000A-2500A
Thermoelectric potential influence: no more than 50% of the index level...

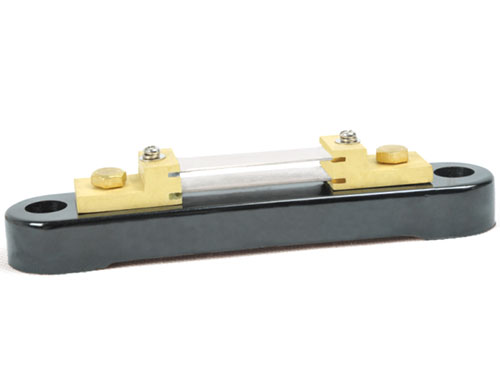

SHUNT SH-L 1A-300A B
The interchangeable shunts are used to multiply the measuring range of current of measuring instruments....
SHUNT SH-L 100A-300A
Ambient condition-25~+40℃; Relative humidity≤80%(35℃)...
SHUNT SH-L 400A-600A
Application: For Telecommunications equipment、Electric cars、Aerospace、Charging station、Electroplating Power Equipment、Instrument a...
SHUNT SH-L 800A-1500A
Thermoelectric potential influence: no more than 50% of the index level. Over load performance: 120% of rated current for 2hours....
SHUNT SH-L 2000A-2500A
Ambient condition-25~+40℃; Relative humidity≤80%(35℃. Rated voltage drop range: 1A-50A 10mV~800mV;51A-2500A  10mV~300mV....
SHUNT SH-T 50A-600A
Temperature rise: Put in rated current for 2hr, after the temperature rising steady test it: When the rated current less than 100A...

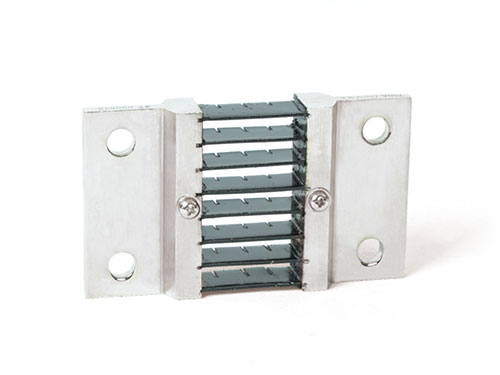

SHUNT SH-T 750A-1200A
When the rated current less than 100A, the temperature rise should be no more than 80K; When the rated current more than 100A, the...
SHUNT SH-T 1500A-2500A
Thermoelectric potential influence: no more than 50% of the index level. Over load performance: 120% of rated current for 2hours....
SHUNT SH-T 2500A
Application: For Telecommunications equipment、Electric cars、Aerospace、Charging station、Electroplating Power Equipment、Instrument a...
