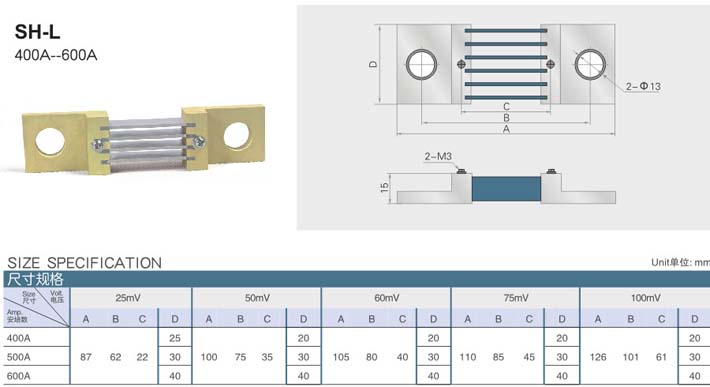

SHUNT SH-L 400A-600A

SH-L Shunt 400A-600A

Use:
The interchangeable shunts are used to multiply the measuring range of current of measuring instruments.

Application:
For Telecommunications equipment、Electric cars、Aerospace、Charging station、Electroplating Power Equipment、Instrument and meter, Dc power system, etc.

Main technical data:

      1)Rated voltage drop range: 1A-50A 10mV~800mV；51A-2500A  10mV~300mV。

      2)Ambient condition-25～+40℃; Relative humidity≤80%（35℃）

      3)Temperature rise: Put in rated current for 2hr, after the temperature rising steady test it: When the rated current less than 100A, the temperature rise should be no more than 80K; When the rated current more than 100A, the temperature rise should be no more than 120K.

      4)Over load performance: 120% of rated current for 2hours.

      5)Thermoelectric potential influence: no more than 50% of the index level.
