Introduction
A DC contactor is an electrically controlled switch used to manage high-power DC circuits. Unlike AC contactors, which handle AC power, DC contactors are specifically designed to interrupt and control DC power, making them essential in applications such as electric vehicles (EVs), solar systems, and industrial machinery.
This article explores the working principles of a DC contactor and its key components, and provides a **DC contactor troubleshooting guide** to help diagnose common problems.
How do DC contactors work?
A DC contactor works similarly to a relay, but is designed to handle higher currents. Its primary function is to make or break a circuit based on a control signal. Here’s a breakdown of how it works:

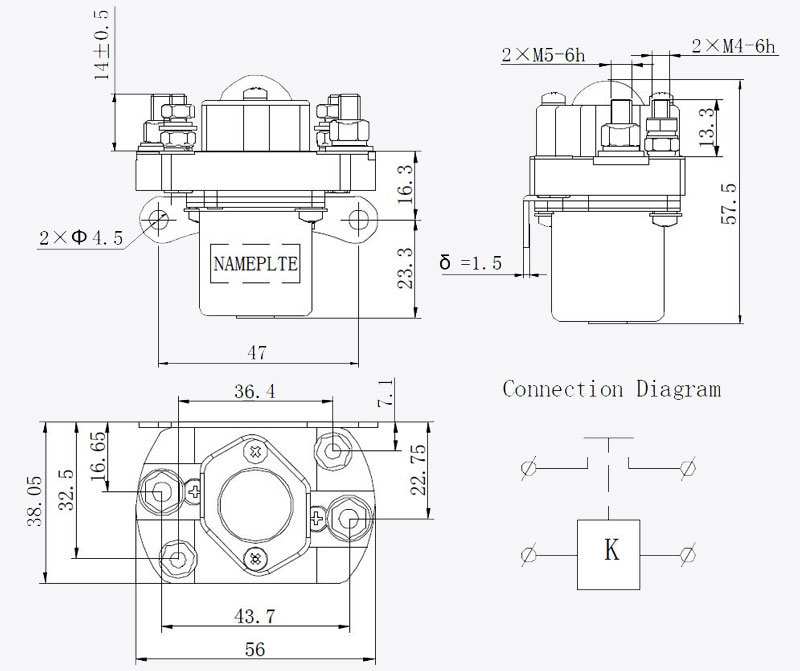

1. Basic Components
Coil (electromagnet): When energized, it creates a magnetic field that moves the contact mechanism.
Contacts:
Main contacts: Carry high DC load currents.
Auxiliary contacts: Used for control signal transmission.
Arc extinguishing system: Critical in DC contactors to extinguish the arc that occurs when the contacts open (DC arcs are more difficult to extinguish than AC arcs).
Mechanical spring: After power is removed, the contacts return to their default position.
2. Operating Mechanism
1. Coil energized: When control voltage is applied, the coil generates a magnetic field.
2. Contact movement: The magnetic force pulls the moving contact toward the stationary contact, closing the circuit.
3. Current flow: After closure, current flows through the main contacts, energizing the load.
4. Coil de-energized: When the control signal is removed, the spring forces the contacts apart, breaking the circuit.
5. Arc extinguishing: The arc extinguishing system (usually using a magnet or an arc extinguishing coil) extinguishes the arc and prevents damage.
DC Contactor Troubleshooting Guide
DC contactors can fail due to electrical, mechanical, or environmental factors. Here is a step-by-step troubleshooting guide:
1. Contactor does not close
Possible causes:
No control voltage to the coil. Coil burned or damaged. Mechanical blockage or stuck contacts.
Solution:
Check voltage at coil terminals. Test coil resistance (open circuit indicates fault). Check for dirt or debris that is blocking movement.
2. Contactor does not disconnect
Possible causes:
Contacts welded due to excessive current. Faulty return spring, residual magnetism in core.
Solution:
Replace welded contacts. Check spring tension, replace if insufficient. Demagnetize or replace core if necessary.
3. Excessive arcing
Possible causes:
Contacts worn, incorrect voltage/current ratings, poor arc suppression.
Solution:
Replace damaged contacts, ensure contactor is rated for load, check arc extinguisher or magnet function.
4. Overheating
Possible causes:
Loose connections, overloaded contactor, poor ventilation
Solution:
Tighten all terminals, use higher current rated contactor, improve cooling or reduce ambient temperature.
5. Chatter or hum
Possible causes:
Low control voltage, dirty or misaligned contacts, coil fault.
Solution:
Ensure voltage is stable, clean and realign contacts, replace coil if defective.
Conclusion
DC contactor are critical components in high-power DC applications, ensuring safe and efficient circuit control. Understanding how they work aids proper maintenance, and a structured DC contactor troubleshooting guide can quickly resolve common problems such as failure to close, overheating, or excessive arcing.
For optimal performance, be sure to select a contactor that meets your specific voltage and current requirements, and inspect it regularly to prevent unexpected failures.
